Allowing Local Network Access in Chrome

Note: This article is for those using New: ID Print, the new enhanced print environment

Overview

As part of Chrome release 142, Chrome will prompt Badge users for Local Network Access. This is a new security feature by Chrome to prevent cross-site request forgery attacks.

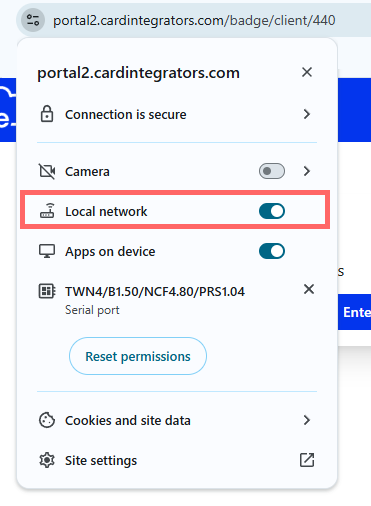

When signing in to Badge, Chrome will prompt a permission for Badge to be granted local network access. This allows Badge to interact with the Print Service on your device. This only needs to be permitted once.

        For more information about Chrome 142 and local network access changes, see: Chrome Feature: Local network access restrictions

Goal

Prevent Chrome's Local Network Access permission prompt when using Badge

Configure

• The Allow List: LocalNetworkAccessAllowedForUrls

  • Removes the Local Network Access prompt from specific websites (ie Badge at https://portal2.cardintegrators.com/)
  • Simply put: pre-allows LNA on specific sites by never asking
• Global Switch: LocalNetworkAccessRestrictionsEnabled
  • Ensures the allow list is enforced across all users

Option 1 - Configure Chrome using Google Workspace

Block Local Network Access prompt for users in the Google Admin Console

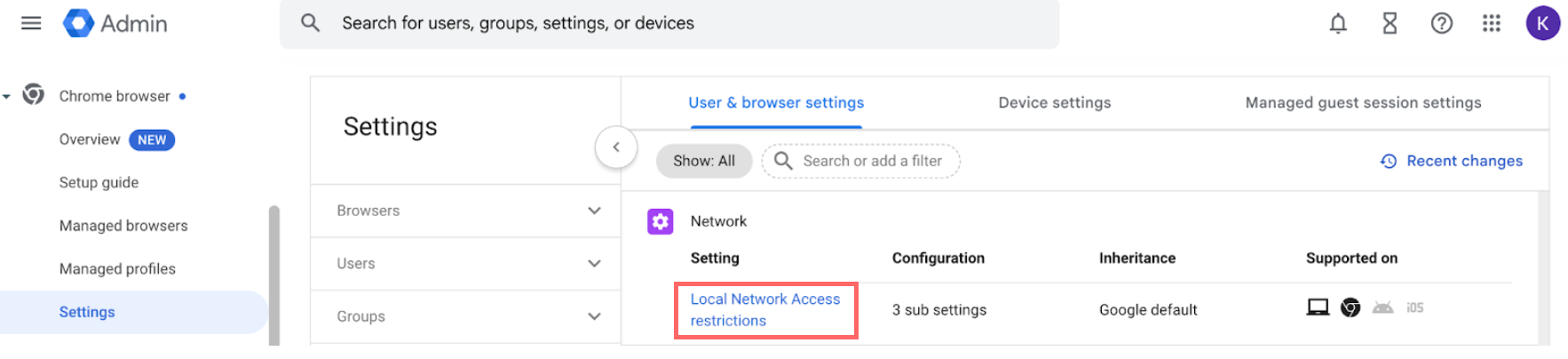

1. In the Workspace Admin Console, go to Chrome Browser > Settings

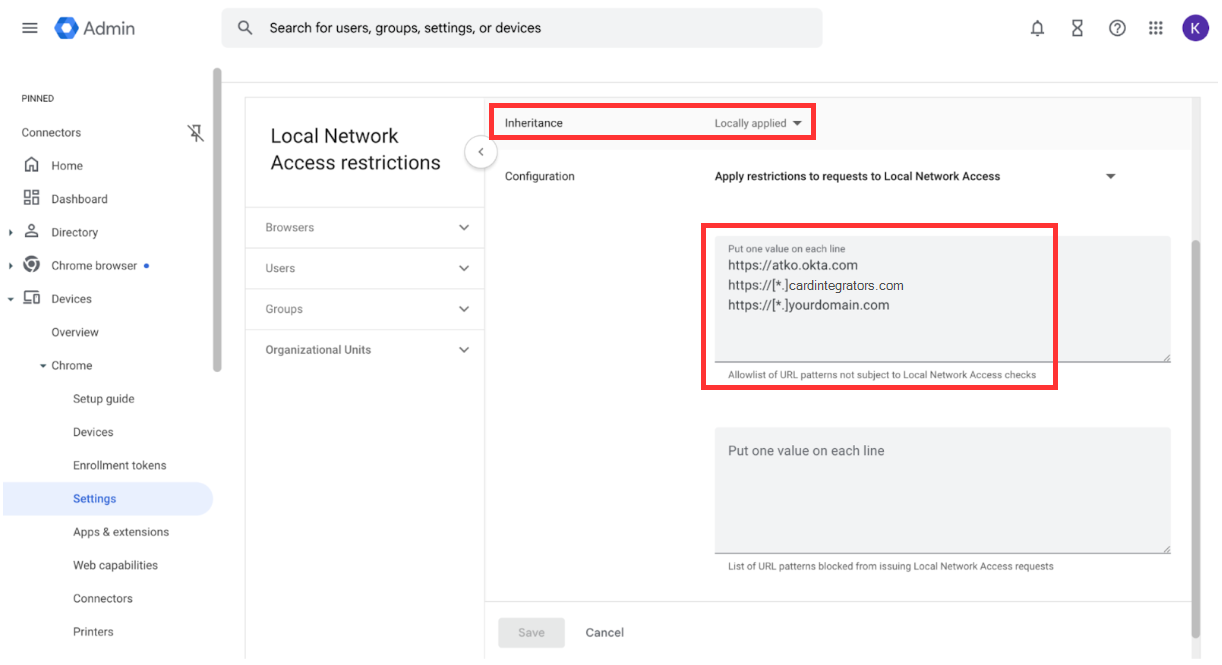

2.  Find the Local Network Access restrictions setting


3. Configure the setting so that Inheritance is Locally Applied


4. Set the Configuration option to Apply restrictions to requests to Local Network Access. Add a URL pattern for each domain you wish to allowlist.
   1. In this case, the domain will be *.cardintegrators.com


5. Assign the setting to your desired Organizational Unit and hit Save


6. Open chrome://policy in your browser, then click Reload to confirm that the values are applied

Option 2 - Configure Chrome using Mobile Device Manager (MDM)

Windows

Use your Mobile Device Manager (MDM) to deploy a policy that pre-grants LNA permission for your cardintegrators URLS on managed devices. This prevents users from ever seeing the prompt. The configuration varies depending on operating system

Windows (via Intune)

1.  In the Intune console, create a custom device configuration profile
   1. Navigate to: Devices > Configuration > Create profile
      1. Platform: Windows 10 and later
      2. Profile type: Template
      3. Template name: Custom


2. Add OMA-URI rows
   1. Enter the LNA URI in the OMA URI property
      1. ./Device/Vendor/MSFT/Registry/HKLM/SOFTWARE/Policies/Google/Chrome/LocalNetworkAccessAllowedForUrls
   2. Enter the URL you want to allowlist in the Value property
   3. If you are entering more than one URL, create a unique row for each URL, and a number for the OMA-URI
      1. For example: /Device/Vendor/MSFT…LocalNetworkAccessAllowedForUrls/1



3. Assign the profile to the desired groups and proceed to test

MacOS

For macOS devices managed by Chrome, you'll deploy a configuration profile (.mobileconfig) with a custom payload for Chrome. The payload should contain the following keys and values in the com.google.Chrome preference domain

Example .plist snippet

<key>LocalNetworkAccessAllowedForUrls</key>
<array>
        <string>https://[*.]cardintegrators.com</string>
        <string>https://[*.]yourdomain.com</string>
</array>
<key>LocalNetworkAccessRestrictionsEnabled</key>
<true/>

Testing

1. Open a browser where the settings have been assigned
2. Enter chrome://policy in the search bar and verify the policy has been applied to the browser
   1. Look for the LocalNetworkAccessAllowedForUrls policy and verify that the cardintegrators URLs are listed.
