ID Print [Windows]: Print and Enroll an ID Card

Before enrolling RFID into a list's ID card, ensure there is a UID header/column. Without a UID header/column, the printer will not be able to enroll the RFID into the card. The printer only recognizes the UID header/column as a RFID compatible header/column.

Click here to learn how to edit headers/columns.

Print an ID Card

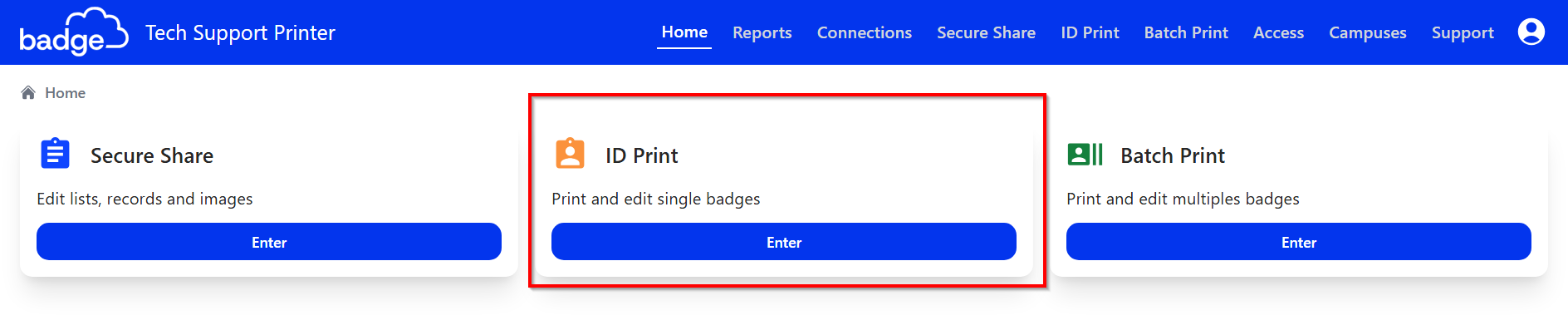

1. Click ENTER in the ID Print module

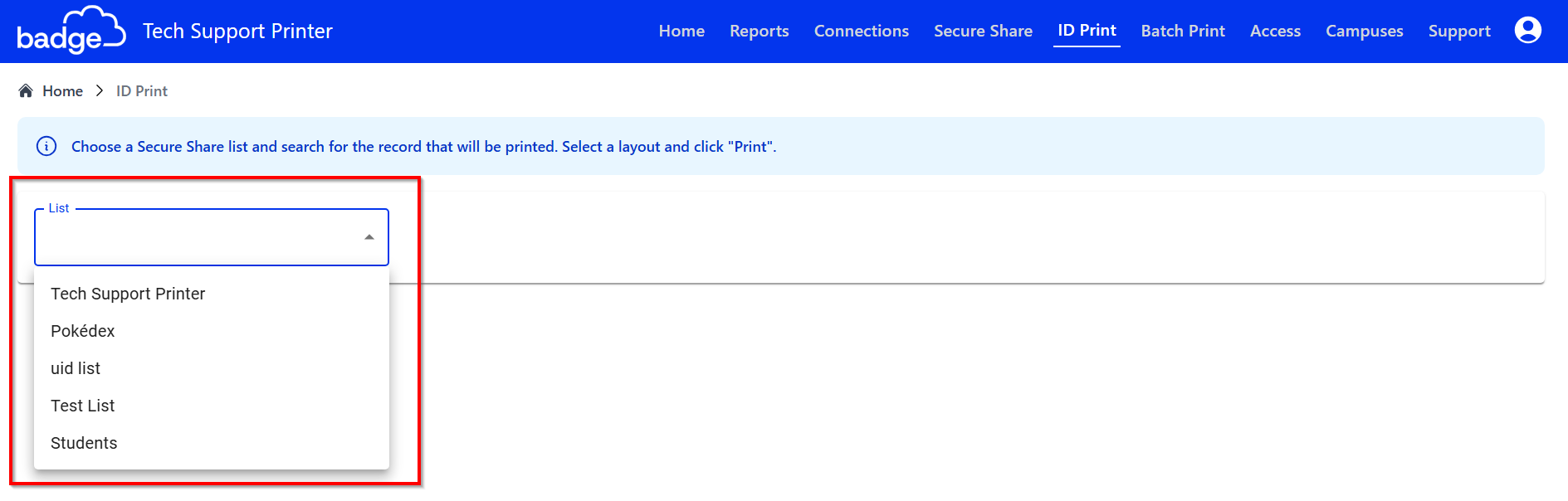

2. Click on the drop-down menu > Find and Select the List Name (e.g., school, staff, district, office) you want to view

3. A pop-up window will appear with the printer's serial port > Select TWN4 > Click Connect

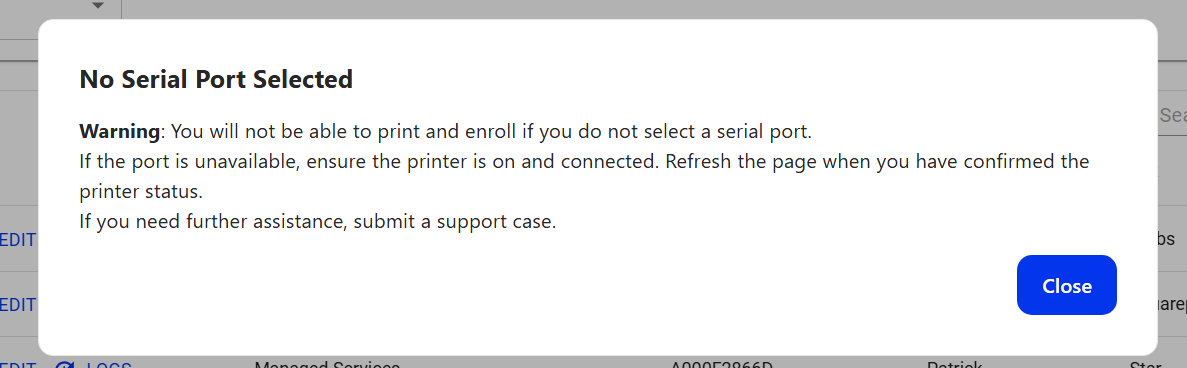

• If this is your first time printing an ID card, you must ensure you select TWN4 to connect. If you do not click Connect, you will receive a RFID reader error



• You successfully connected to the RFID reader when you see Connected to Hardware next to your list.

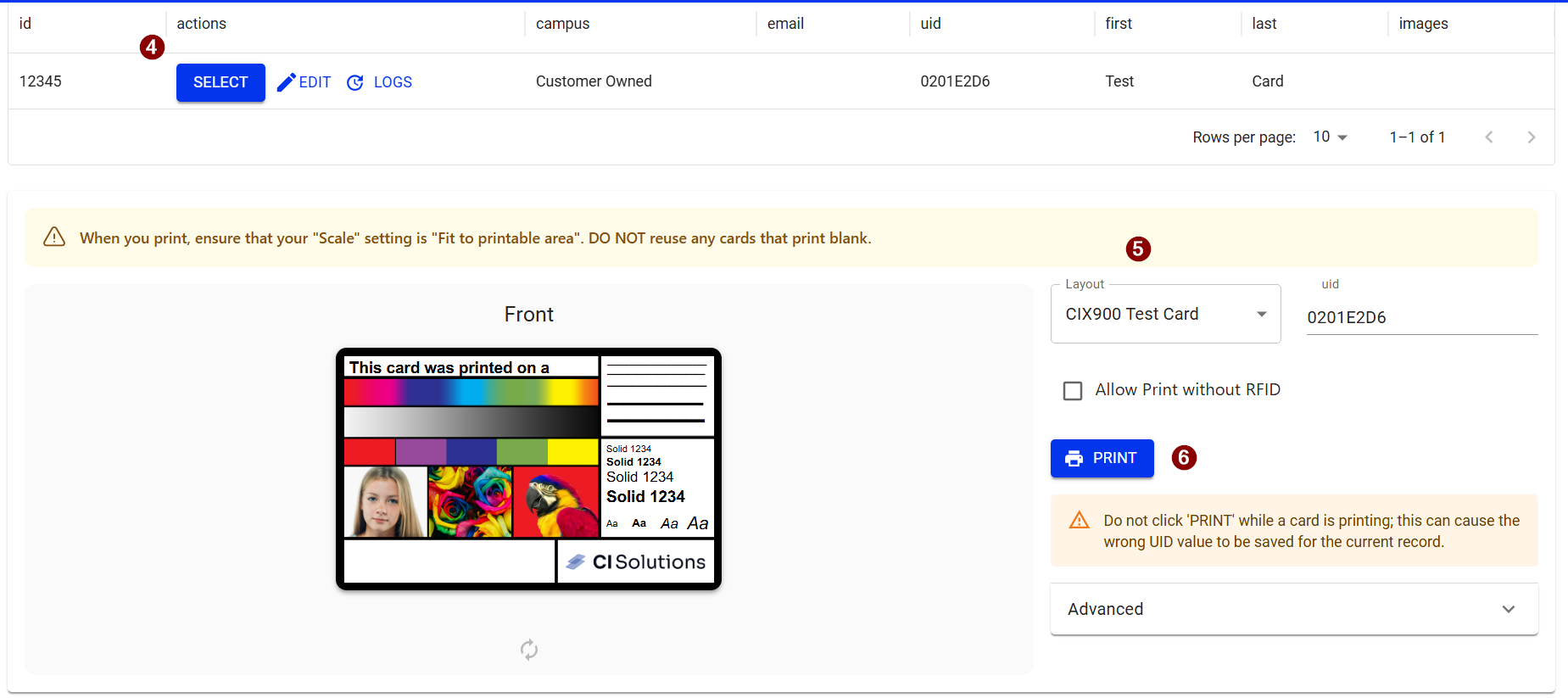

4. Search the record you want to print > Click Select

• Ensure the information in record is accurate.

• A layout preview should appear at the bottom of the screen.

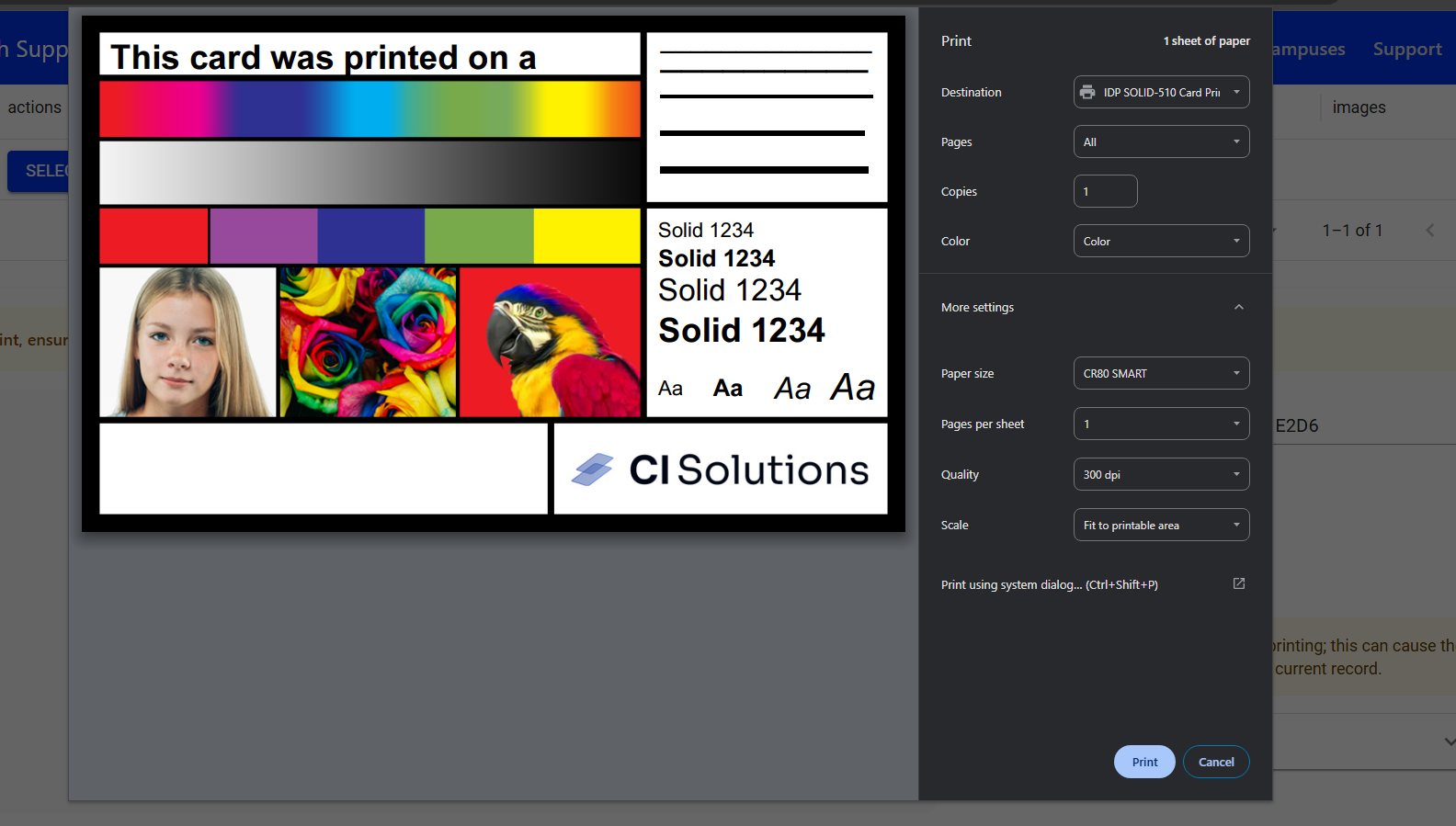

• You will see the UID column populate a new RFID value after the card prints and a green successful enrollment message appears on the bottom left corner of the page.



• If you are getting a red notification stating enrollment failed, Click here to read about confirming your API connection.
