Matica XID 8300: Load Ribbon and Retransfer Film

Modified on Tue, 16 Jan at 2:33 PM

Load Ribbon Film

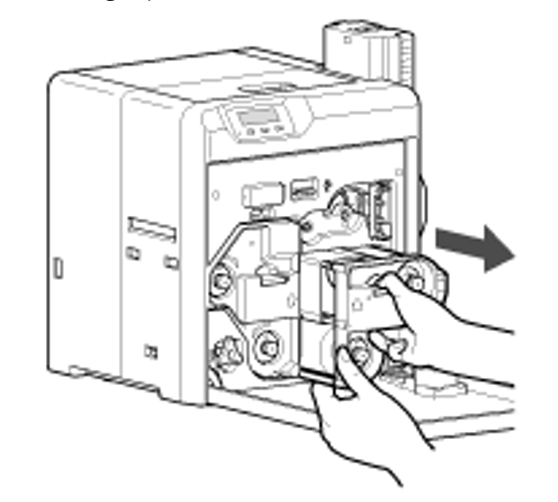

1. Open the front door and remove the yellow cartridge

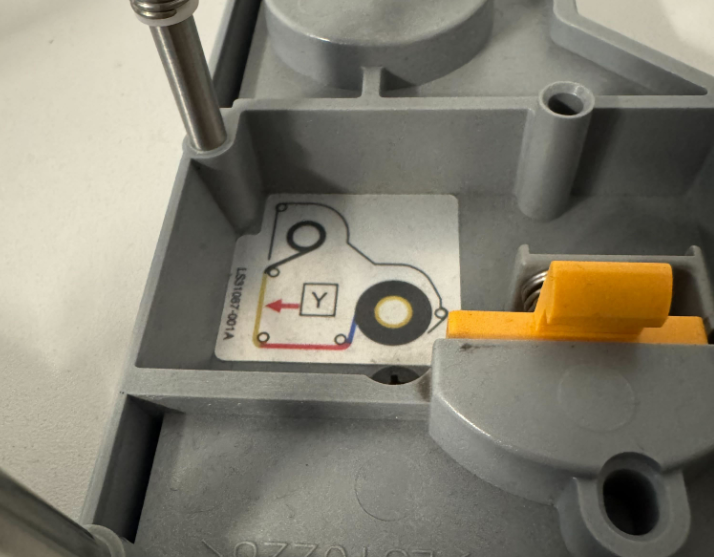

2. Examine and follow the direction of the ribbon based on the sticker guide

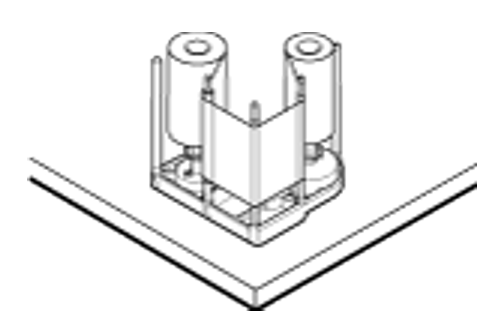

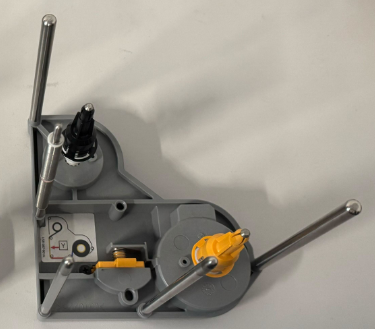

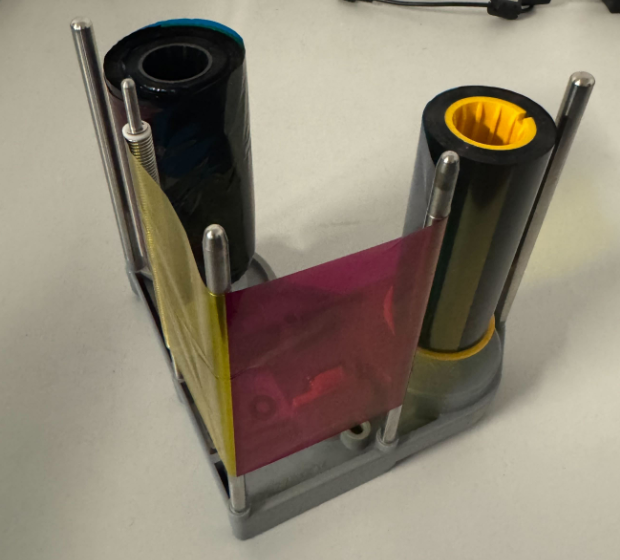

3. Ensure the spools are properly seated to their designated slots and remove any slack by turning the spools


4. Slide the cartridge back into the printer


Load Retransfer Film

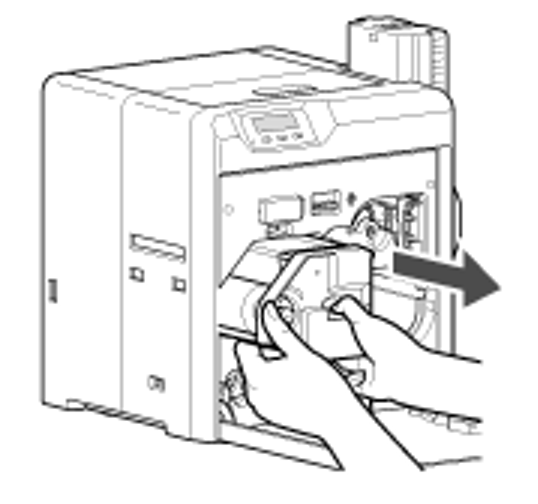

1. Open the front door and remove the green cartridge

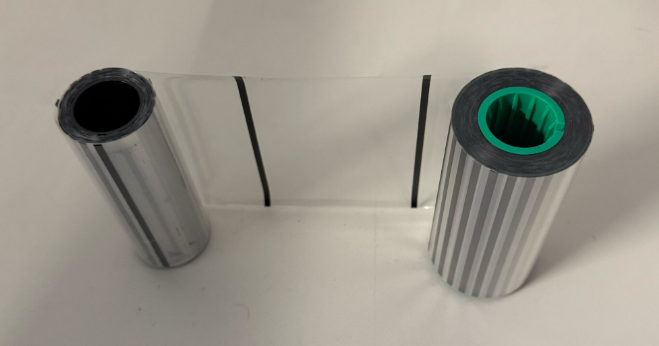

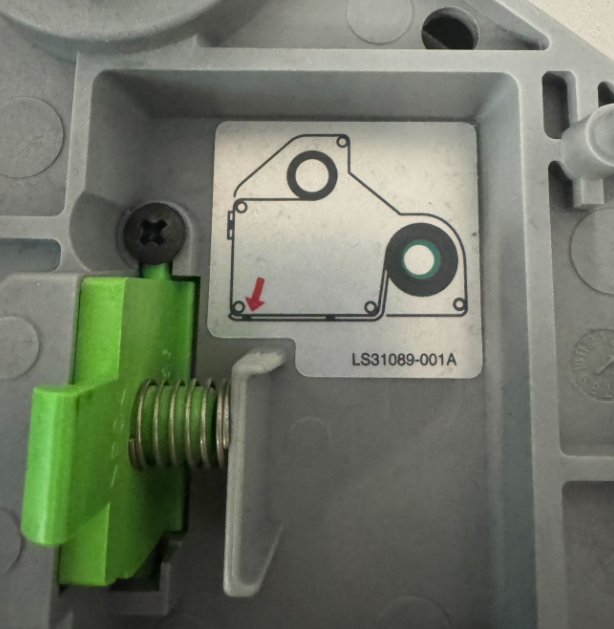

2. Follow the direction of the ribbon based on the sticker guide

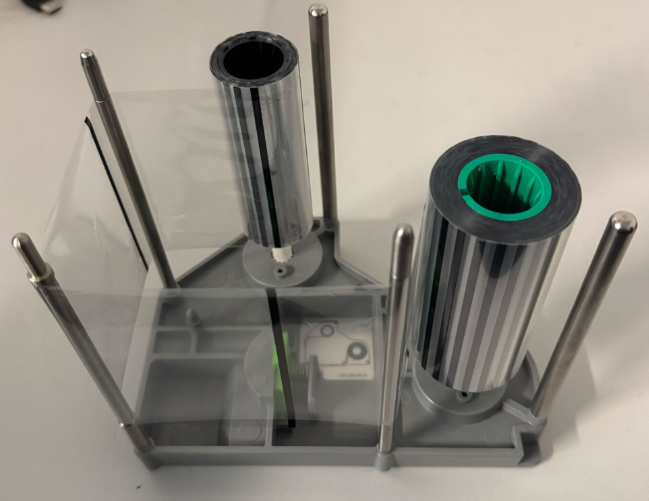

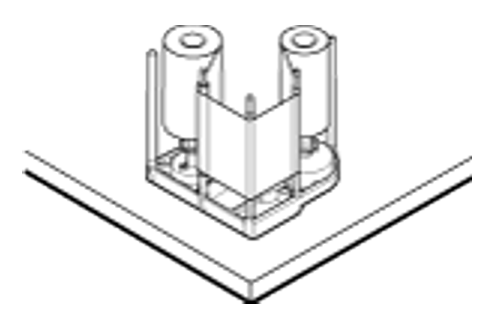

3. Ensure the spools are properly seated to their designated slots and remove any slack by turning the spools


4. Slide the cartridge back into the printer
