CIX900: [MacOS] Print an ID Card in Badge

Print an ID Card

1. Click ENTER in the ID Print module

2. Click on the drop-down menu > Find the List Name (e.g., school, staff, district, office) you want to view > Select List

3. A pop-up window will appear with the printer's serial port > Select TWN4 > Click Connect

If this is your first time printing an ID card, you must ensure you select TWN4 to connect.

Your computer and card printer should now be connected.

You can skip this step by setting printer to default by clicking here.

4. Find the record you want to print > Click Select

Ensure the information in record is accurate.

A layout preview should appear at the bottom of the screen.

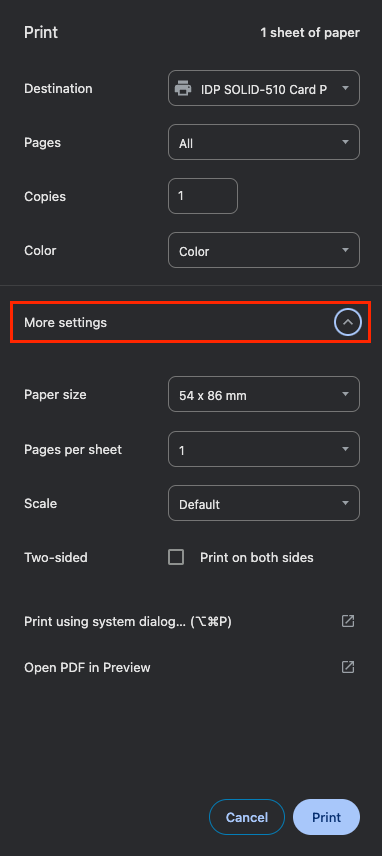

6. Click Print > Select More Settings

7. Click Print using system dialog...

Ensure the paper size is set to CR80

8. Select Printer Options > Click Printer Features

Ensure the Ribbon is set to YMCKO Color Ribbon

9.  Select Print Side

If you have the the flipper module installed, you can select Both for Print Side.

10. Click Feature Sets > Select Wait Option

11. Set the options below > Press OK to save

12. Click Presets > Click Save Current Settings as Preset

Set Preset Name to your preference.

13. Click Print

Ensure the UID matches the card before distribution.
