Download and Install Driver

1. Click here to access the driver.

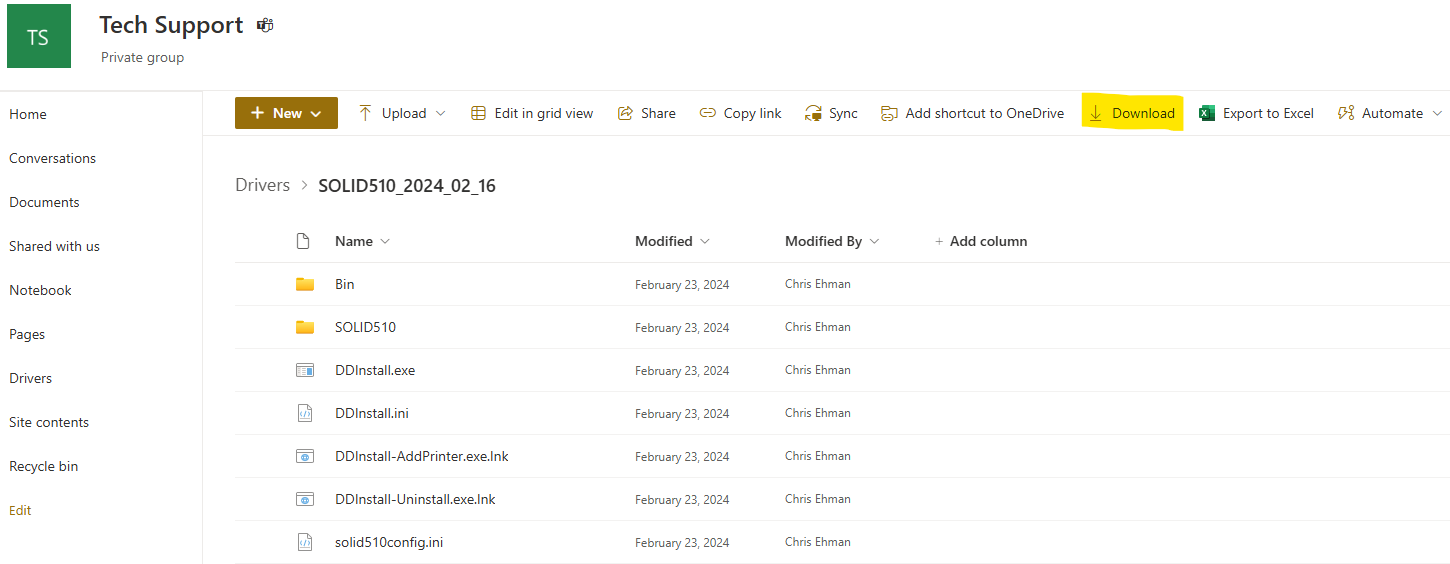

2. Select Download and download the entire SOLID510_2024_02_16.zip folder

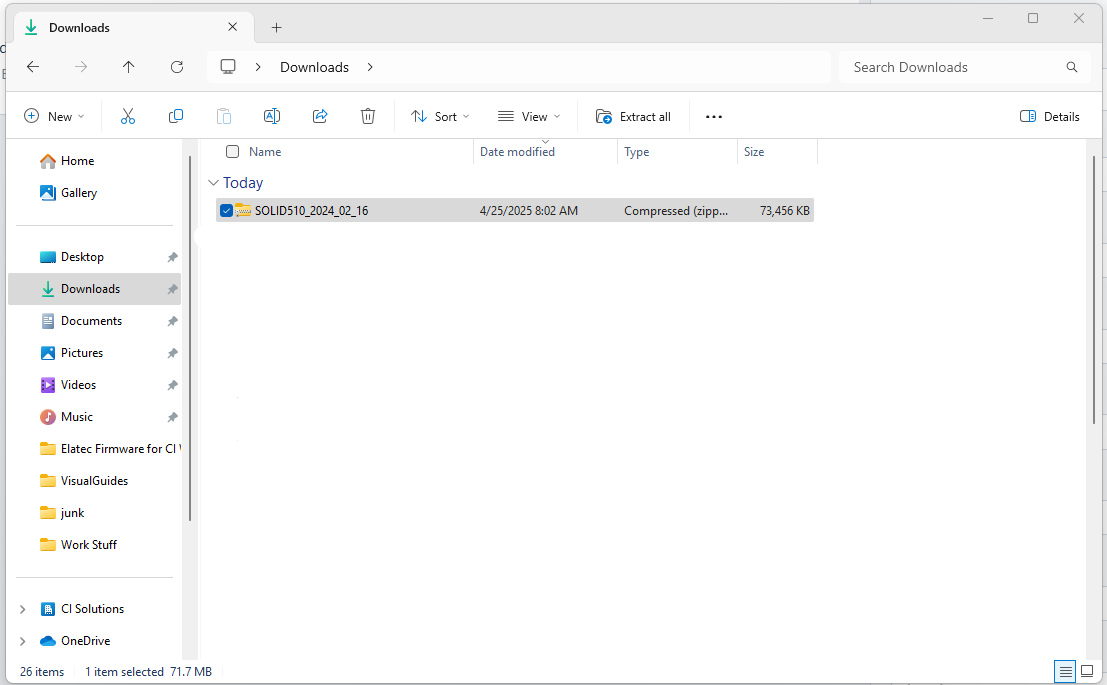

The driver will be downloaded as a ZIP file

3. Extract / unzip this file.

4. Open the extracted folder. Double-click on the DDInstall.exe Application to initiate the installation

        4a. Make sure the printer is unplugged before running the install

5. Follow the installation process selecting Next until prompted to connect the printer

You will be prompted with a Windows Security warning

6. Ensure you select the box to trust the software > Click Install

7. Turn on the printer, connect the USB to the computer > Click Next

8. Restart your computer after the installation is completed

After restarting the computer, your printer should now be available in your Devices and Printers

Click here to Set USB to Use to ensure the computer and printer connection is properly established.

Note: The printer may be named 'IDP Solid 510' or CIX900, both are the same printer just named differently

Click here to connect the flipper and CIX900 to print both sides on a card.

Contact your Badge project manager if you are unsure if your Badge project set up includes a flipper module to print both sides on a card.
